STANDARDS: ASTM D6926 • EN 12697-10 • AASHTO t245
Used to determine the resistance of an asphalt specimen to plastic flow.
The test is performed using a manually dropped hammer.

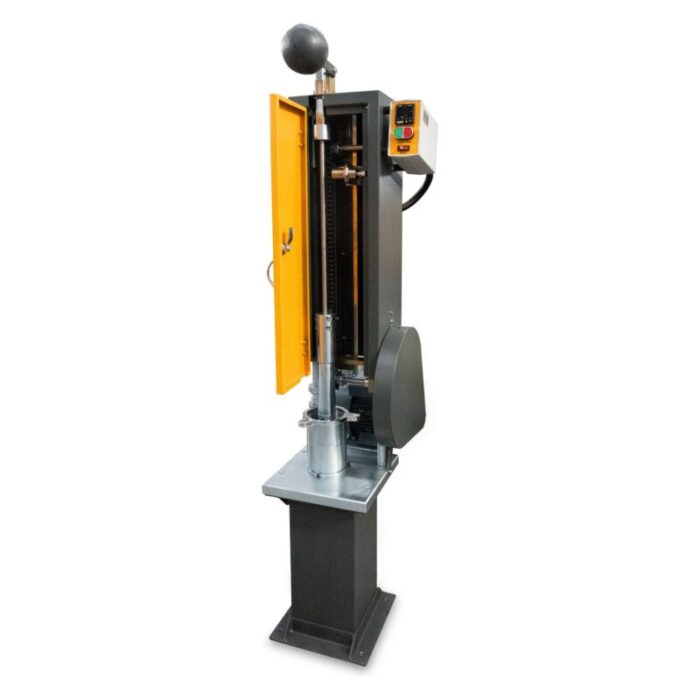

The test is performed in a fully automatic mechanism and programmed to stop automatically at the required number of blows
- For 4″ mould
- For 6″ Marshal mould
- Universal for 4″ and 6″ moulds
ASTM Model:
- Blow Rate: 55 ± 5 blows per minute
- Rammer Diameter: 100.33 mm ± 0.25 mm
- Rammer Weight: 4536 g ± 9 g
- Drop Height: 457.205 mm ± 0.635 mm
- 220 – 240 V / 50 – 60 Hz
EN Model:
- Equipped with safety guard
- Wooden pedestal: 200 x 200 x 450 (h) mm
- Concrete base: 450 x 450 x 200 (h) mm
- Blow Rate: 50 blows in 55/60 seconds
- Rammer Weight: 4535 g ± 15 g
- Drop Height: 460 ± 3 mm
- 220 – 240 V / 50 – 60 Hz
- CM 0102-1: Manual Marshall Compactor
- CM 0102-2: Automatic Marshall Compactor
- CM 0102-3: Marshall Mould 4” or 6”
