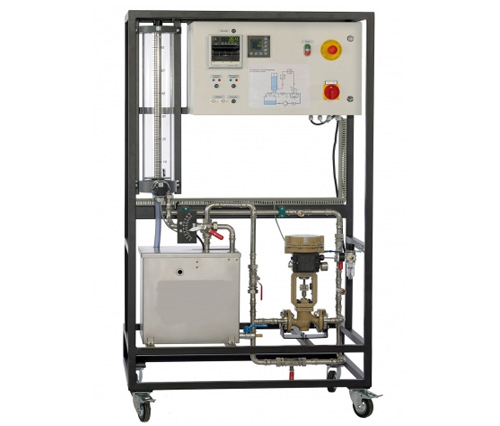

Trainer provides a comprehensive experimental introduction to the fundamentals of control engineering using an example of level control.

A pump delivers water from a storage tank to the transparent level-controlled tank. The liquid level is measured by a pressure transducer installed at the base of the level-controlled tank. The controller used is a state-of-the-art digital industrial controller. The actuator in the control loop is a pneumatically operated control valve with an electro-pneumatic positioner. A ball valve in the outlet line enables defined disturbance variables to be generated. The controlled variable X and the manipulating variable Y are plotted directly on an integrated 2-channel line recorder. Alternatively, the variables can be tapped as analogue signals at lab jacks on the switch cabinet. This enables external recording equipment, such as an oscilloscope or a flatbed plotter, to be connected.

Process control software is optionally available.

• Experimental introduction to control engineering using an example of level control
• Construction of the system with components commonly used in industry
• Digital controller with freely selectable parameters: P, I, D and all combinations
• Level measurement by pressure sensor
