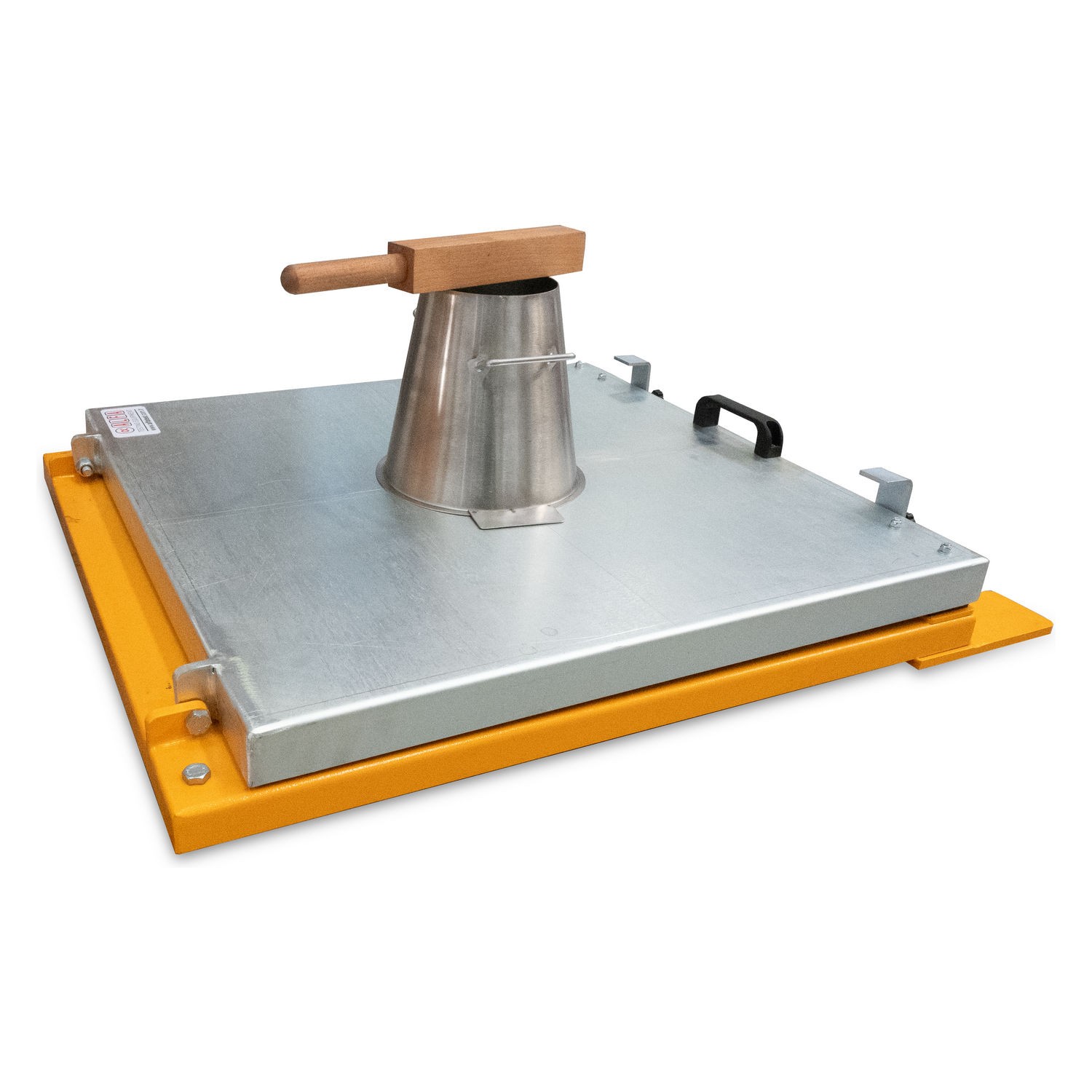

Flow Table used to determine the consistency of fresh concrete by measuring the spread of concrete on a flat plate which is subjected to jolting.
(ASTM C124)
- Table Diameter: Ø 762 mm
- Drop Height: 12.70 mm
- Set Consists of:
- Conical Mould (Ø 171.5 mm / Ø 254 mm x 127 mm)
- Tamping Rod (Ø 16 mm x 600 mm)
(EN 12350-5)
- Table Specifications:
- Dimensions: 700 x 700 mm
- Hinged from One Side
- Marked at Ø 200 mm
- Set Consists of:
- Conical Mould (Ø 130 / Ø 200 mm x 200 mm)
- Wooden Tamping Rod (40 x 40 mm)
- CM 0131: Concrete Flow Table ASTM or EN
