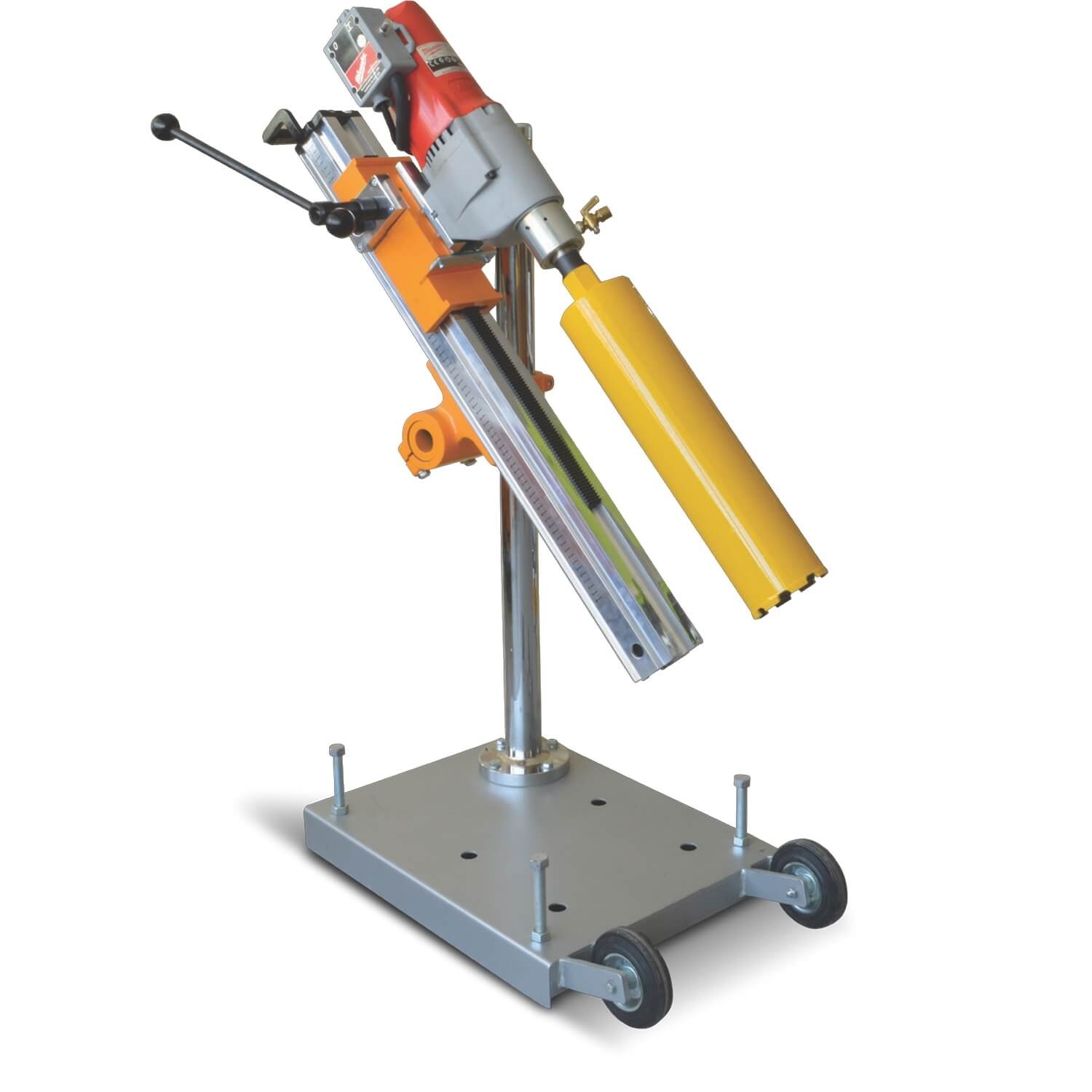

Core Drilling Machine – Electrical

Category:

Core Drill Used to take core samples from irregular rocks or to extrude the core from specimens for test purposes.

Standard 1 ¼” thread

Core Bits: 50mm,75mm,100mm,150mm

should be ordered separately

  • Power input: 2500 W
  • Rated Speed: 450 rpm
  • Max. drill: Ø 162 mm
  • Water inlet
  • B-061/R model can rotate from 0° to 89°
  • Standard 1 ¼” thread for bits
  • 220 – 240 V / 50 – 60 Hz
  • CM 0106-1: Core Drilling Machine – Electrical
  • CM 0106-2: Rotatable Core Drilling Machine
  • CM 0106-3: Core Bit
