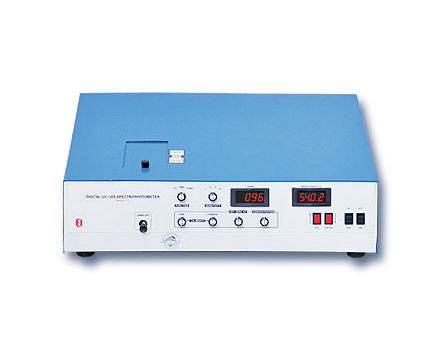

UV-VIS Digital Spectrophotometer is a single beam, accurate, reliable and versatile instrument for spectrophotometric analysis of any concentration. The %T, Abs. 1 and Concentration measurements are displayed on a 3 / digit LED display. 2 An accurate 190.0 to 1000 nm wavelength control, with a resolution of 0.1 nm is obtained by Microprocessor controlled stepper motor. The wavelength is displayed on a 4 digit LED display separately. A monochromator using Czerny-Turner mounting technique with 1200 lines/mm grating is used. It is an extremely useful instrument for chemical, pharmaceutical, agricultural, biotechnological labs., hospitals, engineering & medical colleges, universities & research institutions.
| Data Output Port | USB Port |
| Display | 31/2 digit LED data display |
| Model No / Item Code | IMS-04 |
| Optical System | Single Beam |
| Sample Compartment | 4 position sample holder with position selector control for 10 mm path length cuvettes |
| Wavelength Range | 190-1000 nm |
Accessories on Request:
- RS-232 Computer Software
- 80 character centronics dot matrix printer
- Quartz cuvettes 10mm path length(set of 2)
- Glass cuvettes 10mm path length(set of 2)
- Set of 2 Glass Cuvettes(50mm path length)
- Spare lamp(Vis.) Halogen 6V 10W
- Polystyrene cuvettes 10mm path length (set of 5)
- 4 Position sample holder
- Range 190 to 1000nm
- µP based wavelength selection
- 4 digit LED display for wavelength
- 3½ digit LED display of %T, Abs. & Conc.
- Highly accurate & stable
