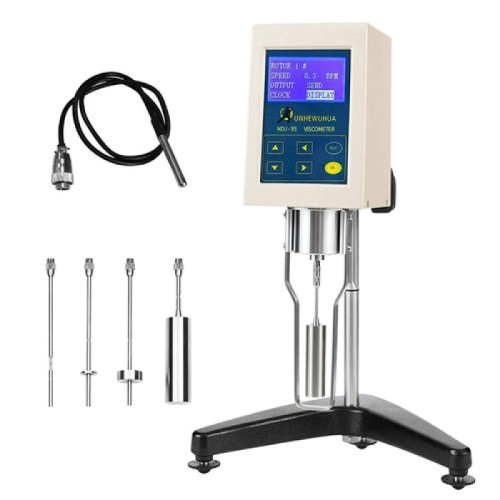

Digital Viscometer

Category:

Digital viscometer is a new digital product used for determining the liquid viscose capacity and the absolute viscosity. Comparing with other similar products, this instrument has the following features: It is widely used to determine and measure the liquid viscosity in many applications such as grease, painting, pharmacy and adhesives. – High measuring accuracy – Stable in measured display – Easy operation and read-out – Excellent in Anti- interference.

Features

  • Measurement range: 10mPa·s ~ 100000 mPa·s
  • Rotor types: 1#, 2#, 3# and 4# rotors
  • Rotor velocity: 6 rpm, 12 rpm, 30 rpm, and 60 rpm
  • Operation modes: Manual and automatic
  • Measurement error: ±5% (Newton liquid)
  • Dimensions: 105 mm X 120 mm X 160 mm (the base not included);
  • Net weight: 2.5 Kg (the base not included)
  • Spindle numbers: 4 Spindles
  • Rotor Speed (rpm): 6/ 1 2/30/60
  • Accuracy: ± 5% Newtonian Fluid
  • Speed: 0 – 60 rpm
  • pH of the sample: 0 – 14
  • Measurement Accuracy: ±0.1% (FS)
  • Repeatability: ±0.5%(FS)
  • Power Supply: AC 220V / 50Hz
