STANDARDS: ASTM D113 • ASTM D6084 • EN 13398 • EN 13589 • EN 13703 • AASHTO T51

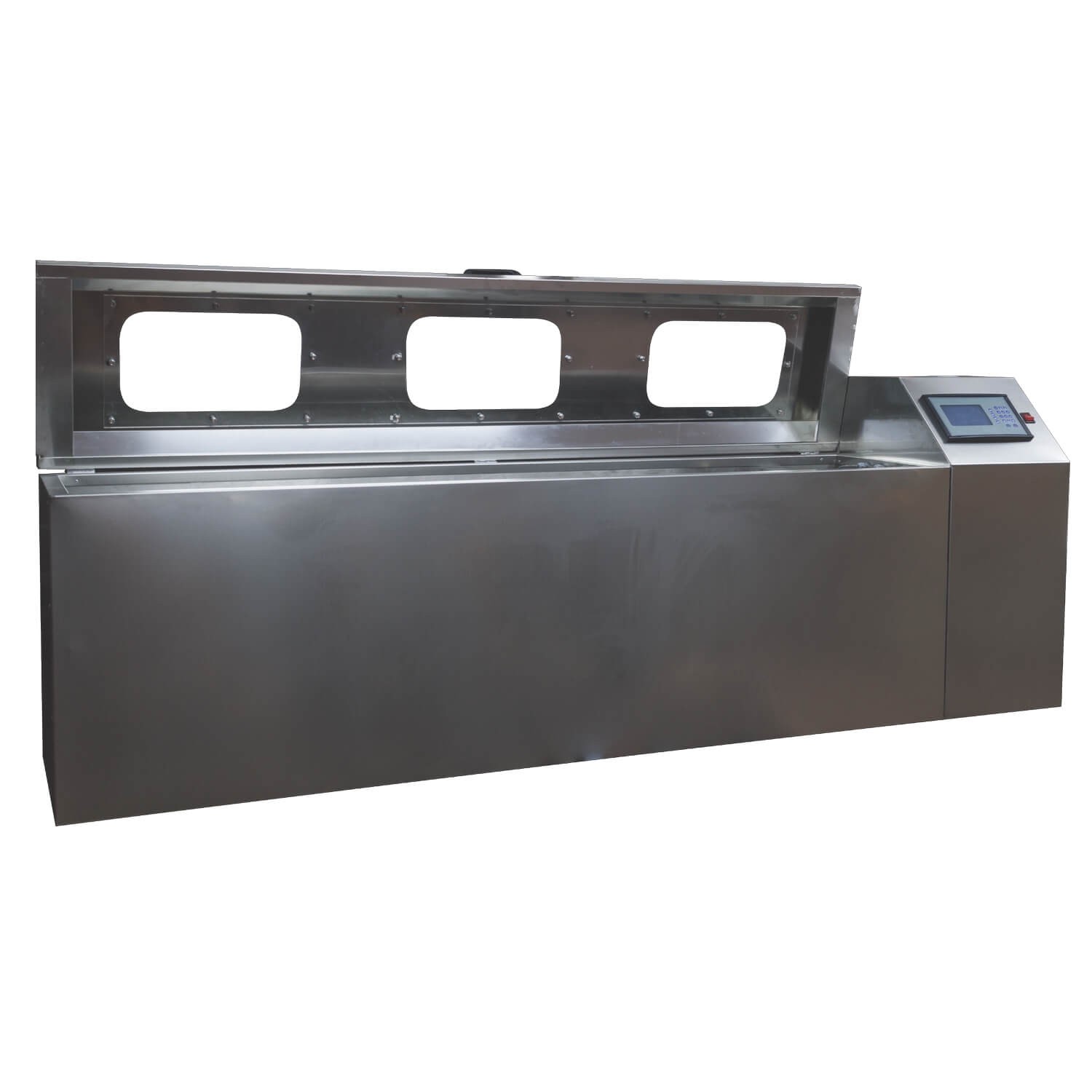

Regular Model:

• Used to determine the ductility of a bituminous materials by measuring the distance to which it will elongate before breaking when two ends of a briquet specimen of the material are pulled apart at a specified speed and temperature.
• Unless otherwise specified, the test shall be made at a temperature of 25°C ± 0.5°C and with a speed of 50 mm/min ± 5.0 %.

Forced Ductility (With Force Measurement):

•  Machine is controlled by LCD/PC
• Used to determine the ductility of a bituminous material measured by the distance to which it will elongate before breaking when two ends of a briquet specimen of the material are pulled apart at a specified speed and at a specified temperature
