Standards: ASTM D2850 • D4767 • D7181 • D2166 • D1883
- Loadcell : Submersible – 5 / 25 / 50 kN (Different Capacities available upon request)
- Pressure Actuators : 1800 kPa (each cell and pore PVA)
- Can perform UCS and UU, CU, CD Triaxial Tests on soil specimens with diameter up to 70 / 100 / 150 mm
- With specific accessories (ordered separately); CBR, Unsaturated triaxial tests and flexible wall permeability can be performed with this machine
Supplied With :
- State-of-the-art PC software that helps performing the required tests in either full automatic or full manual modes with wide ranges of test modes and selections to suite both commercial and academic (research) users, offering fully customizable test report with Mohr s Circle and Other Soil Parameters calculations.
- Suction Tubes
- Valve Connections (4-4 mm / 6-6 mm)
- Connections (4-4 mm / 4-6 mm / 6-6 mm)
- Spare Hose (4 mm x 5 m)
- Spare Hose (6 mm x 5 m)
- Hose Cutter
- End Plates for UCS
- Filter Paper
- Spare O-Rings for Base Plate
- Water Trap with Necessary Connections
- Vacuum Pump (Dual stage) with Necessary Connections
Accessories:
Accessories for each sample diameter must be ordered separately, each set consists of:
- Cutting Mould
- Membrane Placement Mould (Suction Mould)
- Latex Membrane
- Split Compaction Mould
- Compacting Bar with Plexiglass Collar
- End-Plates
- Porous Stones
- O-Rings Set
- O-Ring Stretcher
- Pedestal (with 2 holes)
- Top Cap (with 1 hole)

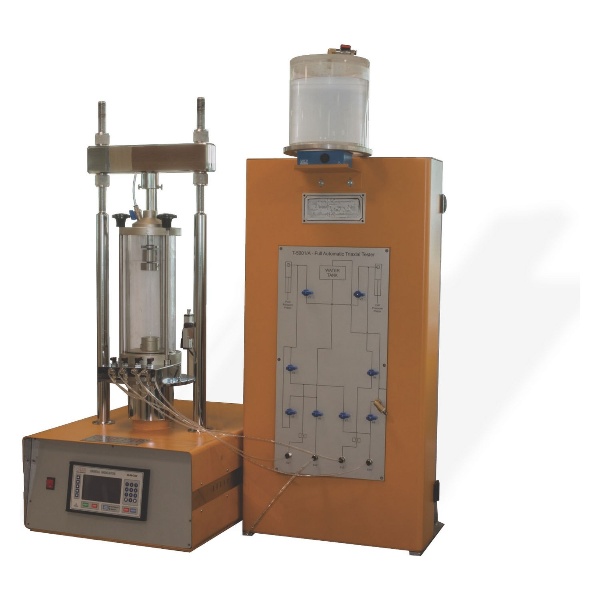

- CM 0206-1: Fully Automatic Triaxial Set up to 70mm
- CM 0206-2: Fully Automatic Triaxial Set up to 100 mm
- CM 0206-3: Fully Automatic Triaxial Set up to 150 mm
- CM 0206-4: Unsaturated Triaxial Upgrade Pack
