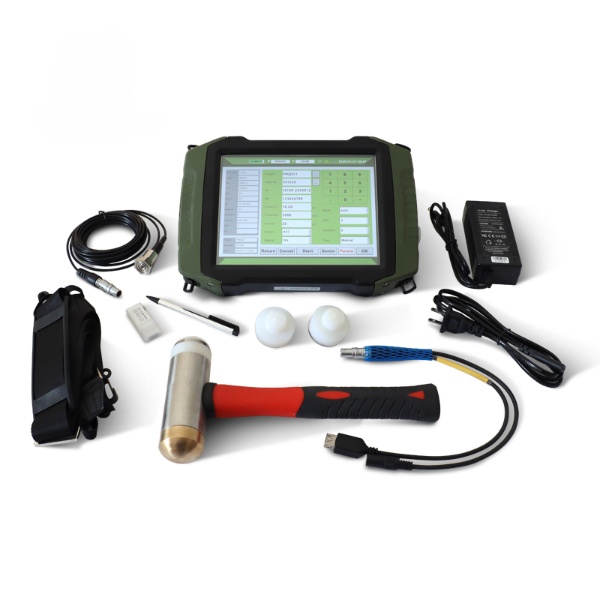

Low Strain Pile Testing Device is a high-performance testing device. It is suitable for various engineering industries. It provides high test accuracy, stable performance, friendly interface and convenient operation etc.
- Main control unit: Low power embedded industrial computer
- Display screen: 8.4″ true-color LCD display screen (high-brightness) 800×600
- Storage: 8G
- Power supply: Built-in high-performance rechargeable lithium battery, ≥8 hours
- Operation method: Touch screen
- Data transmission: USB2.0
- Sampling interval: 5μs～65535μs
- Record length: 1024 dots
- Sample resolution: 16-bit AD
- System noise: ＜30μv
- Dynamic Range: ≥100dB
- Signal bandwidth: 5Hz/12kHz
- ND 0104: Low Strain Pile Testing Device
