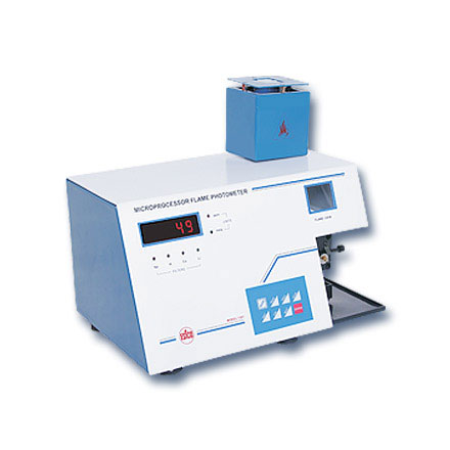

Microprocessor Flame Photometer – 1381 is an ideal instrument for the determination of sodium, Potassium, Calcium and Lithium. It uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced and reproducibility. The System has 3-Point calibration facility using curve fitting software. It has soft touch membrane key for ease of operations.
The sample solution is aspirated through an automiser. Sample, Air and the fuel are mixed in the mixing chamber which is then sprayed as a very fine mist into the flame. The color of the flame is changed depending upon the concentration of elements present. Radiations from the flame passes through the sensing system and specific narrow band interference filter which permits only the characteristic radiation to pass to the photo-detector. The output of the photo-detector is then processed by the microcontroller and the final results are displayed on the digital display.
| ppm | meq/l | ||
| Serum | Urine | ||
| Range | Na: 0.1 – 100 K: 0.1 – 100 Ca: 15 – 100 Li: 0.5 – 100 |
Na: 0 – 200, 1:100 dil K: 0 – 10, 1:100 dil – Li: 0 – 2, 1:5 dil |
Na: 0 – 250, 1:100 dil K: 0 – 100, 1:100 dil – Li: 0 – 10, 1:2 dil |
| Sensitivity | 0.1 ppm | ||
| Accuracy | ± 1% upto 40 ppm, ± 2% above 40 ppm | ||
| Readout | 5 Digit 7-Segment Bright Red LED Display | ||
| Flame System | LPG & dry oil free air | ||
| Detector | Silicon Photodiode | ||
| Calibration | 3-Point Calibration | ||
| Power | 230 V ± 10% AC, 50 Hz | ||
| Dimensions | 365 x 245 x 220 mm (L x B x H) (Approx.) | ||
| Weight | 7.5 Kg (Approx.) | ||
| Air Supply | By oil free mini compressor unit with pressure regulator | ||
| Combustion Gas | LPG controlled by precision regulator | ||
| Automiser | Axial flow type | ||
| Burner | Stainless steel | ||
| COMPRESSOR UNIT | |||
| Air Supply | By oil free mini compressor unit with pressure regulator | ||
| Combustion Gas | LPG controlled by precision regulator | ||
| Power | 230 V ± 10% AC, 50 Hz | ||
| Dimensions | 290 x 255 x 210 mm (L x B x H) (Approx.) | ||
| Weight | 8 Kg (Approx.) | ||
- Useful for Medical & Laboratory Use
- Highly Accurate Using Microcontroller
- Direct Results in ppm and meq
- 3-Point Calibration Using Curve Fitting Software
