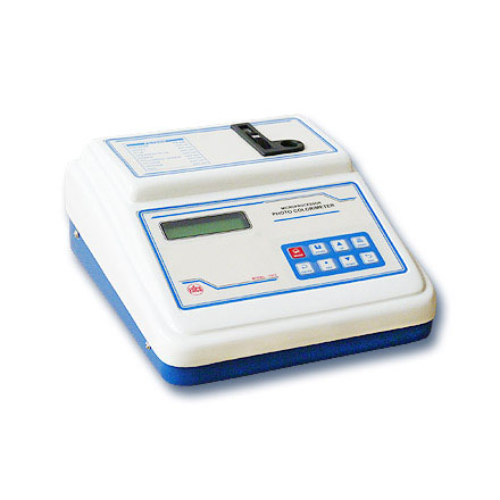

Microprocessor Photo Colorimeter

Category:

Microprocessor Photo Colorimeter – 1312 is a compact and easy to operate instrument for Photo Colorimeter analysis of any concentration. The output is available on a 16 x 2 line alphanumeric backlit LCD display in terms of %Transmission (%T), Absorbance (Abs.), Concentration (Conc.), and KFactor. This instrument has 100 sample storage memory and printer output facility for printing data with any dot matrix printer. The use of microcontroller has made it extremely versatile and accurate instrument. 10 mm pathlength matched test tubes are used for sample and blank. Facility has been provided to store the last KFactor and the standard concentration value. User can also enter any known ‘Factor’ for a test, thereby eliminating the need to re-run the standards again and again.

The use of high class standard wide range glass filters covering 400 to 700 nm give extremely good results. The filter setting is controlled by a rotating disc having 8 filters. An automatic shutter is provided to stop the light reaching the photocell, when test tube is not inserted in the tube holder. This increases the life of photocell tremendously.

Wavelength Range 400 – 700 nm
Resolution %T: 1, Abs: 0.01, Conc.: 1, KFactor: 1
% Transmission 0 – 100% T
Absorbance 0 – 1.99 A
Concentration 0 – 19999
K Factor 1 – 19999
Photo Detector Silicon Photodiode/Photo Cell
Display 16×2 line alphanumeric LCD display for %T, ABS., Conc., K Factor
Keyboard 8 Keys, soft touch membrane type
Data Storage Up to 100 samples
Light Source LED
Sample System 10 mm path length matched glass test tubes
Filter 400, 450, 490, 520, 540, 570, 620, 680 nm
Printer Interface Printer Interface for any dot matrix printer
Dimensions 250 x 240 x 90 mm
Weight 3 Kg (Approx.)
Power Supply 230V AC±10% 50 Hz. with in-built stabilizer
Accessories Matched Test Tube: A set of 5, Mains Lead, Operation Manual and Dust Cover, Test Tube Stand.
  • Highly Accurate & Stable
  • Range 400 To 700 nm
  • 16 X 2 Line Alphanumeric LCD Display
  • Printer Attachment Facility
  • Storage For 100 Samples
  • Soft Touch Membrane Keys
