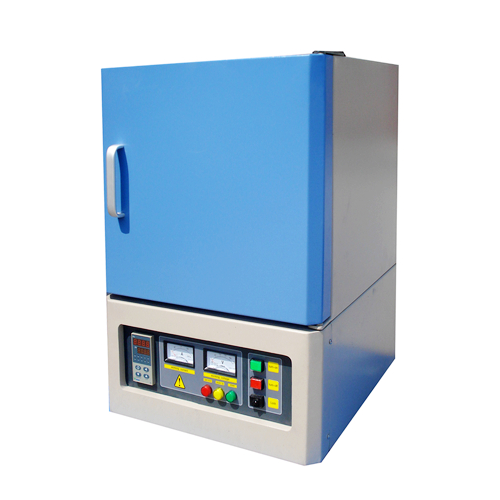

Muffle Furnace-High Temperature

Category:

These Muffle Furnaces (0-1500°C) are specially designed to meet the requirements of high temperature applications.
In these furnaces, the casing is manufactured using MS reinforced with iron angles. Along with this, the chamber of these furnaces is made of ceramic Zirconium Board having horizontally placed elements. Heating is carried out through silicon carbide rods and controlled through transformer. The furnaces have large surface radiation ratio to enhance thermal efficiency and reduce power consumption. There is a control panel fitted with the furnaces and having digital temperature indicator cum controller.

  • Maximum furnace Temperature up to 1450ºC
  • Working Temperature up to 1400ºC
  • Operable in 220 volts Single Phase AC supply
Chamber Size (mm)
100 x 100 x 225
125 x 125 x 250
150 x 150 x 300
125 x 125 x 300

Optional Accessories:

  • Digital Temperature Controller cum Indicator (P.I.D. Based)
