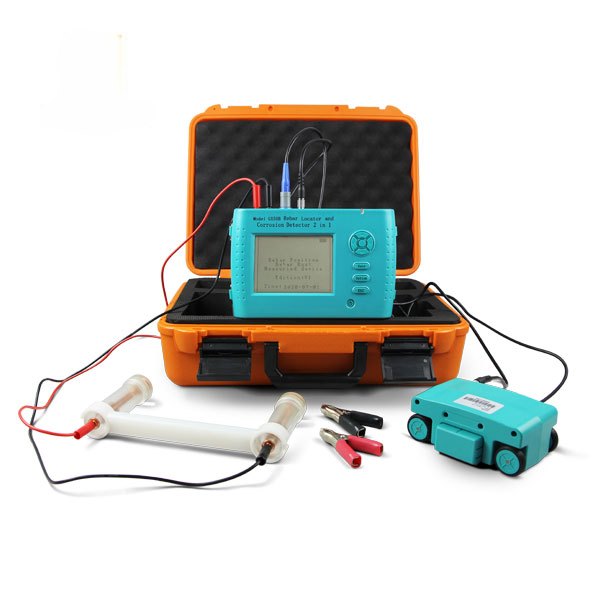

Rebar location and corrosion measuring system is designed for locating and or scanning of rebar in concrete and measure depth, identify rebar size, rebar diameter & corrosion in concrete before drilling and before core test or to find out physical condition of building, structures, roads & highways etc.
Application
·Testing concrete cover thickness;
·Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution;
·Rebar corrosion.
Rebar Detection
Applicable steel-bar diameter: dia.6mm~dia.50mm
Tested range of concrete cover thickness: Low range:6mm~90mm; High range:7mm~180mm
Tested range of Steel-bar diameter: dia.6mm~dia.50mm
Permissible error of Steel-bar diameter: 1 grade
Working environment: Temperature: -10℃+40℃; Dampness:<90%RH; EMI: no Strong electromagnetic field; Power supply: 6 dry cells, work more than 30 hours
Corrosion Detection
Measuring Potential: ±1000mV;
Measuring accuracy: ±1mV
Measuring space: 1-99 cm (adjustable)
Environment Requirement: Ambient Temperature: -10°℃+40°℃, to avoid direct exposure to the sun for a long time; Relative Humidity:<90%RH; Electromagnetic Interference: no strong alternating electromagnetic field.
Power supply: 6 dry cells, work more than 30 hours
- ND 0103: Rebar Location and Corrosion Measuring System
