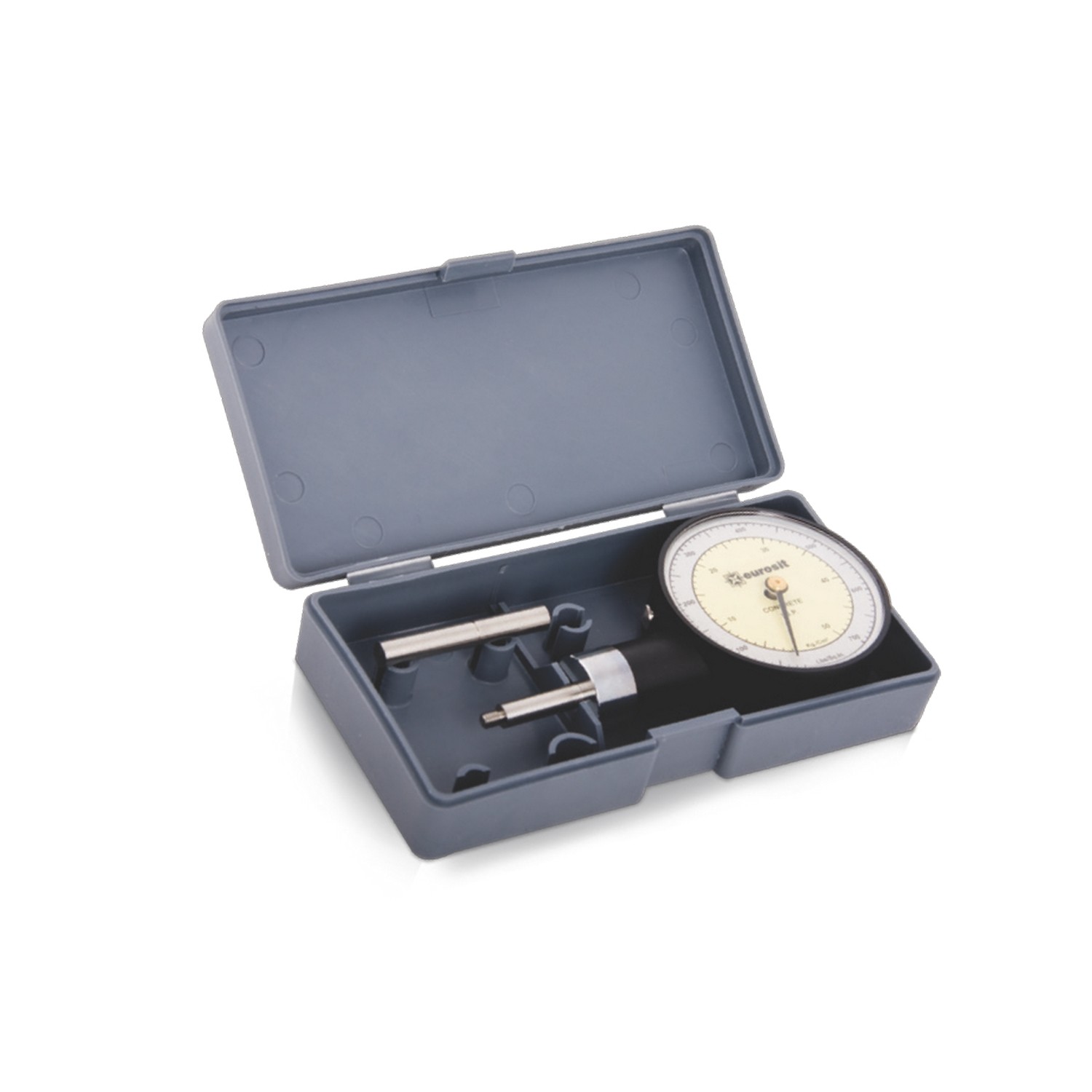

- The Dial-Type Soil Penetrometer is used to estimate the unconfined compressive strength, cohesion, and internal friction angle of cohesive and semi-cohesive soils directly in the field.
- Equipped with interchangeable plungers of varying diameters, the device allows for tailored testing across a range of soil consistencies, from soft clays to dense sands.
- A resettable maximum reading indicator ensures accurate capture of peak penetration resistance, enhancing the reliability of test results.
- Constructed with durable materials, the penetrometer is built to withstand rigorous field conditions, ensuring longevity and consistent performance.
- This instrument is essential for geotechnical engineers conducting preliminary site assessments, excavation planning, and evaluating soil stability for foundation design.
Supplied With:
- Plunger Ø 6.35 mm (0.25 inch) – 31.67 mm²
- Plunger Ø 10 mm – 78.54 mm²
- Plunger Ø 15 mm – 176.71 mm²
- Plunger Ø 20 mm – 314.16 mm²
- Plunger Ø 25 mm – 490.87 mm²
- Protective carrying case
- CM 0184-1: Soil Dial Penetrometer Set
- CM 0184-2: Soil Geo-Dial Penetrometer Set
