A highly accurate and easy-to-use Soil Resistivity Meter for use with the 4-pin Wenner or 3-pin Fall Potential methods of soil resistance measurement.

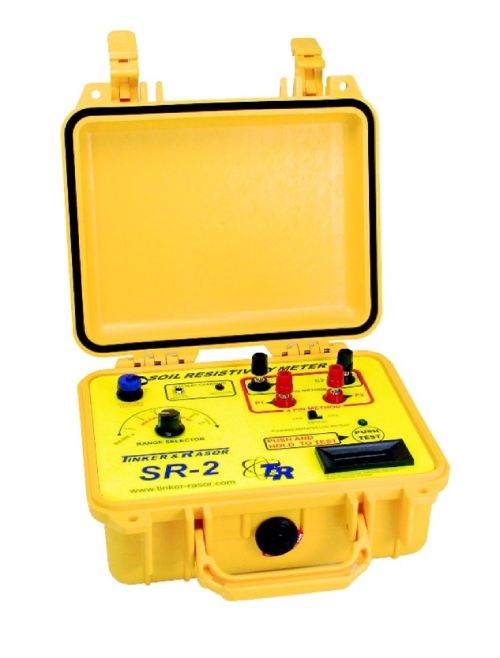

The Tinker & Rasor SR-2 Soil Resistivity Meter is a highly accurate and easy-to-use soil resistivity instrument for use with the 2-pin and 4-pin (Wenner) methods of soil resistance measurement. A pin selector switch allows choosing between 2-pin and 4-pin tests without removing cables.
- 4.5-digit display.
- 0.01 Ohm to 3.3 MOhm ranges.
- Simple push-button operation.
- Weather / impact resistant Pelican case
- Internal rechargeable 12V battery.
- Low battery indicator.
- AC adapter.
- Quick instructions in lid of instrument.
- Up to 50-foot pin separations.
- 4-Pin “Wenner” method”.
- 3-Pin “Fall of Potential” method.
- 2-Pin method.
- 1-Pin “Single Rod” method.
- Data logger connection.
- Tinker & Rasor SB-1 Soil Box (sold separately).
