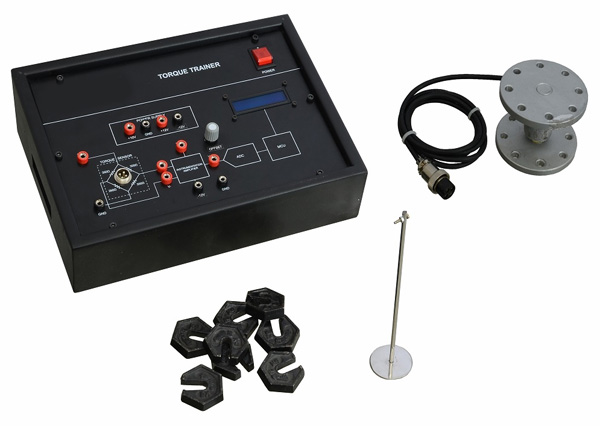

Torque Measurement Trainer comprises of strain gauge-based reaction type torque transducer, fulcrum arm of 1 M length with L angle to mount the sensor, Pan & weights with digital torque indicator to read the torque in Kg-m

A torque sensor or transducer converts torque into an electrical signal. The most common transducer is a strain gauge that converts torque into a change in electrical resistance. … The sensor’s output is a function of force and distance, and is usually expressed in inch-pounds, foot-pounds or Newton-meters.

• This is embedded in the sensor and receives and conditions the input signal.
• It provides scaling.
• It provides filtering.
• It offers a variety of outputs, compatible with various data acquisition systems.
